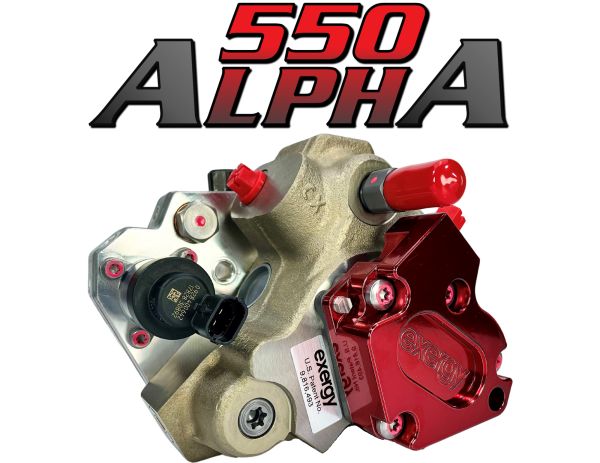

2003-2007 5.9 Cummins Exergy 550 Alpha Stroker CP3 Pump (6.7C Based) - E04 20010

E04 20010
Pricing: $3,700.00

Qty:

Description

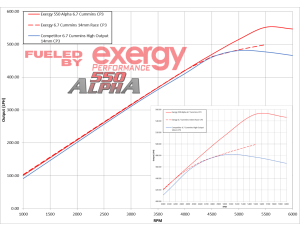

Introducing the Exergy 550 Alpha CP3! The first of an industry leading series of pumps set to take the CP3 pump platform to the next level! Based on our legendary 14mm Stroker pumps, the 550 Alpha CP3 carries the output trajectory 1000 RPM farther than previous and competing CP3 Stroker pumps, peaking at an output of 550 liters per hour. This makes it the perfect pump for high RPM race applications that spin beyond 4500 RPM.

Note: The 550 Alpha pumps will require a different supply line. The original supply port is plugged.  This plug should never be removed. The fuel supply is fed directly into the billet gear pump housing at the port labeled "Inlet". The 550 Alpha pumps have a proprietary MPROP/fuel pressure regulator design for optimum rail pressure control without impeding max pump performance. Custom tuning and supporting modifications will be required. Primary fuel supply requirement for max pump performance: 200 GPH @ 15 psi per Pump.

Details

  • E04 20010
  • E04 20010
  • New

Shipping Information

  • Item Requires Shipping
  • 18.0 lbs.
  • W11.0000” x H11.0000” x L11.0000”
